The square feet per ton rule is a commercial HVAC estimating shortcut derived from assumed cooling load density.
It does not come from Manual J.
It does not appear in residential code.
It does not function as a residential sizing method.
Instead, contractors inherited it from commercial estimating practice.
The square feet per ton rule came from commercial buildings that averaged 20–25 BTU per square foot. When you divide 12,000 BTU per ton by that load density, you get roughly 500 square feet per ton.

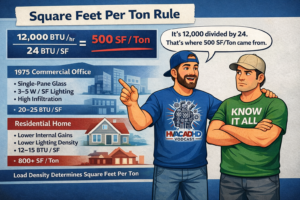

Image Filename: square-feet-per-ton-rule-origin-math.png
Alt Text: Graphic explaining the square feet per ton rule showing 12,000 BTU per hour divided by 24 BTU per square foot equaling 500 square feet per ton
Caption: The square feet per ton rule came from dividing 12,000 BTU per ton by historic commercial load densities of 20–25 BTU per square foot.
During the mid-20th century, many commercial office and retail buildings operated with cooling loads between 20–25 BTU per hour per square foot.
At the time, those buildings typically included:
Minimal insulation
Single-pane glazing
Lighting densities of 3–5 watts per square foot
High infiltration
Constant-volume rooftop systems
Elevated ventilation without demand control
Because internal and envelope loads ran high, overall cooling density followed.
Since one ton equals 12,000 BTU per hour, dividing that capacity by an average load of 24 BTU per square foot produces approximately 500 square feet per ton.
In short, the square feet per ton rule reflects inverted load density.
Originally, engineers used the square feet per ton rule for:
Conceptual estimating
Early budgeting
Mechanical room planning
Electrical service sizing
Preliminary feasibility checks
However, engineers never intended it as a final equipment selection method.
Engineering references describe square-foot-per-ton sizing as an empirical approximation used before detailed load modeling.
Over time, the industry blurred that distinction. As a result, a budgeting shortcut started circulating as if it were a universal sizing rule.
Commercial load density—not residential data—created the square feet per ton rule.
Residential HVAC design follows a different framework entirely.
According to the ASHRAE Handbook – Fundamentals, engineers calculate cooling load based on envelope transmission, solar gains, infiltration, ventilation, and internal loads — not floor area ratios.
https://www.ashrae.org/technical-resources/ashrae-handbook
Likewise, ACCA Manual J (8th Edition) requires room-by-room residential load calculation using climate-specific inputs and detailed construction data.
https://www.acca.org/standards/technical-manuals/manual-j
After calculating the load, ACCA Manual S (2024 Edition) governs equipment selection using manufacturer performance data.
https://www.acca.org/standards/technical-manuals/manual-s
None of these standards include a square-foot-per-ton sizing method.
Therefore, applying the square feet per ton rule to residential construction requires ignoring the governing standards.
Even early energy-code residential homes typically land closer to 800 square feet per ton or higher, depending on climate and layout.
Why?
Homes carry lower internal sensible gains than commercial office space.
Lighting density remains lower.
Occupant density rarely matches commercial occupancy.
Operating schedules differ significantly.
Because commercial buildings historically carried higher internal loads, their BTU-per-square-foot density stayed elevated. In contrast, residential buildings usually run lower internal gain profiles.
When load density drops to 15 BTU per square foot:
12,000 ÷ 15 = 800 square feet per ton.
If load density falls to 12 BTU per square foot:
12,000 ÷ 12 = 1,000 square feet per ton.
As the load changes, the ratio changes automatically.
Square feet per ton equals:
12,000 ÷ (BTU per square foot)
That relationship remains constant.
However, load density changes based on:
Envelope assemblies
Glazing performance
Infiltration rates
Internal gains
Ventilation strategy
For that reason, square footage alone cannot determine cooling capacity.
Ultimately, the building drives the load.
Then the load drives the tonnage.
The square feet per ton rule:
Originated from commercial cooling load densities of roughly 20–25 BTU per square foot
Produces approximately 500 SF per ton when divided into 12,000 BTU per hour
Served early commercial budgeting and feasibility
Never functioned as a residential sizing standard
Understanding the origin of the square feet per ton rule strengthens professional literacy.
Relying on it instead of calculating load weakens professional practice.
At HVAC 2 Home Performance, we calculate the load first. Then we select equipment that matches it.
